Single Dedector DR Systems
Category: Floor Mounted DR Systems
Thanks to its special design, it is one of the most preferred systems by hospitals and polyclinics.
PROFILE D S SERIES
Single Dedector DR Systems
Category: Floor Mounted DR Systems
Thanks to its special design, it is one of the most preferred systems by hospitals and polyclinics.
Dosyalar
ALUMINIUM BODY - SPECIAL DESIGN
Thanks to its special design, it is one of the most preferred systems by hospitals and polyclinics.
It provides easy installation and cheap cost thanks to its special design.
Electromagnetic brakes hold 4 different zones for safe stopping and easy operation.
Thanks to the foot brake pedal extending along the table, it can be controlled from any point on both sides of the table. (Optical control optional)
With easy positioning, effective results are obtained in elderly and inability to walk.
With the silent movement of the table surface, patients can be moved easily.
Each brand ion chamber can be installed in the Buki system.
Dose adjustments via tube status (optional.)
H.F. X-RAY GENERATOR
100 kHz - 450 kHz
50 kW - 65 kW - 80 kW

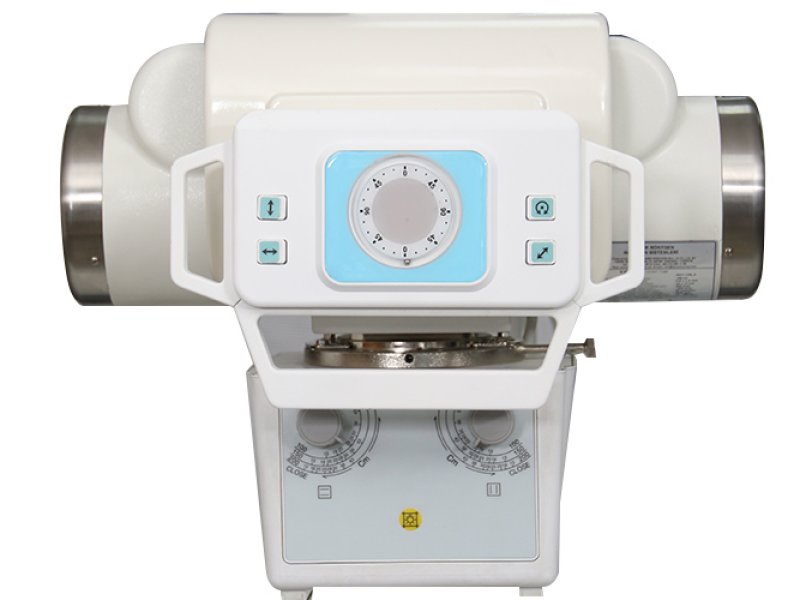

X-RAY TUBE
0,6x1,2 mm - 300 kHU - 1250 kHU
0,6x1,0 mm - 600 kHU - 2400 kHU -opt
FLAT PANEL DETECTOR
1 pcs 35x43 cm - 2500x3000 piksel - 140 mm - 16 bit - Wi-Fi

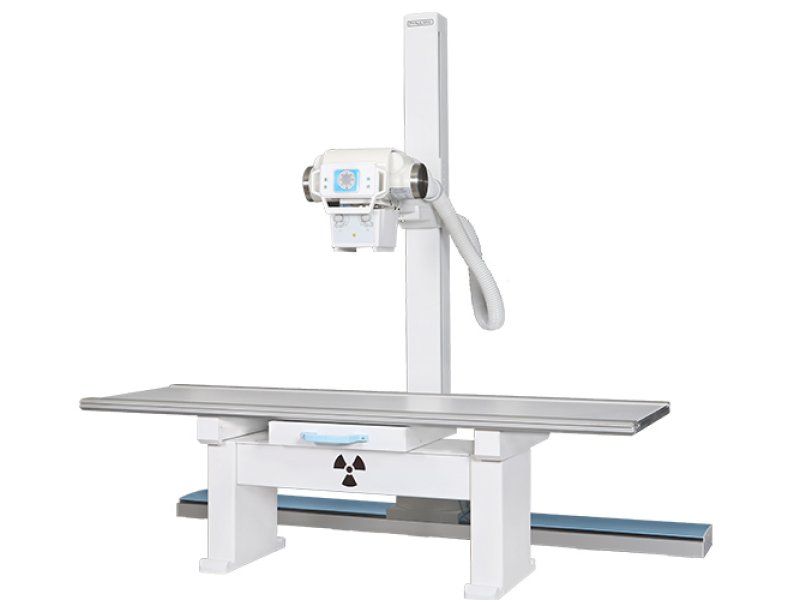

4 WAYS BUCKY TABLE
4 Ways floating Top Table
Electromagnetic Brake System
Elevating Bucky Table - opt
Grid
FLOOR MOUNTED TUBE STAND
Manual Control
Electromagnetic Brake System
Synchronization Function with Table and Wall Stand - opt
2 Ways Motorized Movement - opt
5” Tablet Diplay -opt

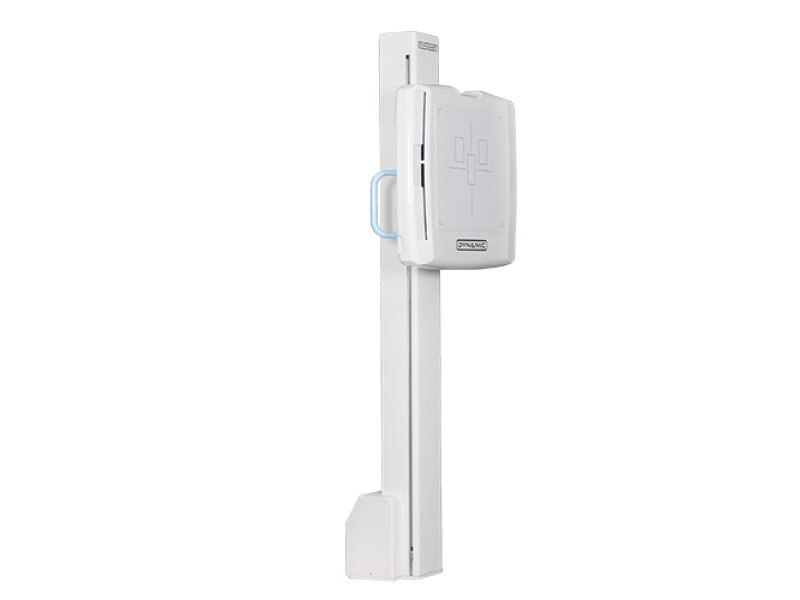

WALL STAND
Manual Control
Electromagnetic Brake System
Vertical Motorized Movement -opt
Synchronization Function -opt
+90°/-15° Tilt- opt
WORKSTATION
19” - 23” LCD Screen
Image Processing Software
DICOM 3.0 standart
Scoliosis Function (Taking Full-Body Image)
H.T. CABLES
150 kV - Flexible
COLLIMATOR
Manual Control
Automatic Collimator - opt
