500 mA Analog X Ray System
Category: Analog X-Ray Systems
Special design for all basic clinics
PROFILE SERIES
500 mA Analog X Ray System
Category: Analog X-Ray Systems
Special design for all basic clinics
MODELS : PROFILE 30 S / 55 S / 65 S / 80 S
MODELS : PROFILE 40 R / 50 R / 65 R / 80 R
ALUMINIUM BODY - SPECIAL DESIGN
Thanks to its special design, it can be used very easily by hospitals and polyclinics.
Thanks to its special lightweight and aluminum structure, it allows easy installation and long-lasting use.
Thanks to the special spring balance system, it can be used silently and without vibration.
Electromagnetic brakes provide safe stopping and easy use by holding from 4 different areas.
Thanks to the mobile foot brake pedal, it can be controlled from any point on both sides of the table.
With its easy positioning, effective results are obtained in elderly and disabled patients who cannot walk.
With the silent movement of the table surface, patients can be moved comfortably.
Any brand of ion chambers can be installed in the Buki system.
Automatic centering warning system
H.F. X-RAY GENERATOR
H.F 50 kW
40- 150 kV by steps
10- 500 mA by steps
0,1- 500 mAs by steps
0,001-10 sec by steps
AEC - DSS - DAP - 5000 APR
X-RAY TUBE
150 kV- 0.6x1.2 mm - 300 kHU - 1250 kHU - 3.000 rpm rotating anode.

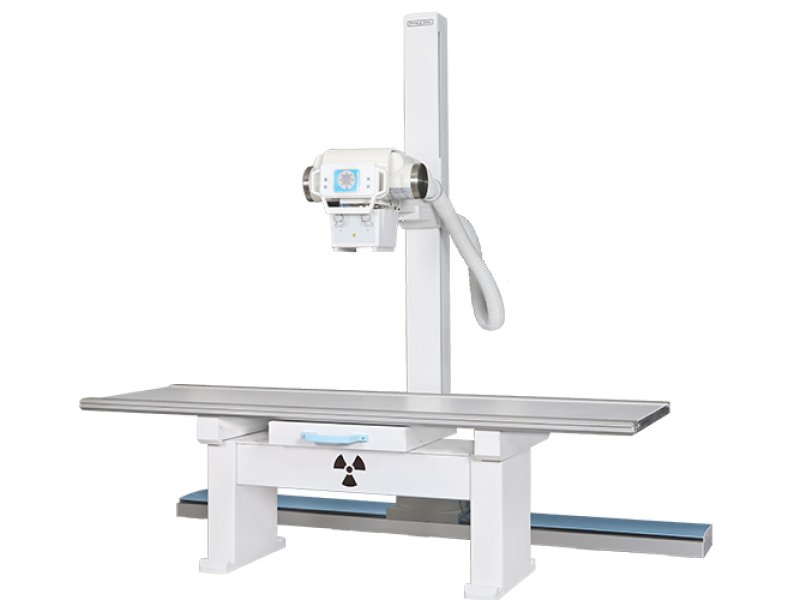

FLOATING BUCKY TABLE
4-Way Floating Top Table or
6-Way Elevating Type Floating Top Table
Top Table Size: 220x80 cm
Top Table Long. Movement: +/-43 cm
Top Table Trans. Movement: +/-12 cm
Patient carrying capacity: 300 kg
Grid Type: Oscilating
Electromagnetic Brake System
Cassette Tray
3 Field AEC Chamber
TUBE STAND
Electromagnetic Brake System
Tube Stand Longitudinal Movement on the rail: +/-190 cm
Tube Stand Vertical Movement: 50-180 cm
Tube Rotation: +/-135 degrees
Tube Stand rotation in vertical axis: +/-90 degrees

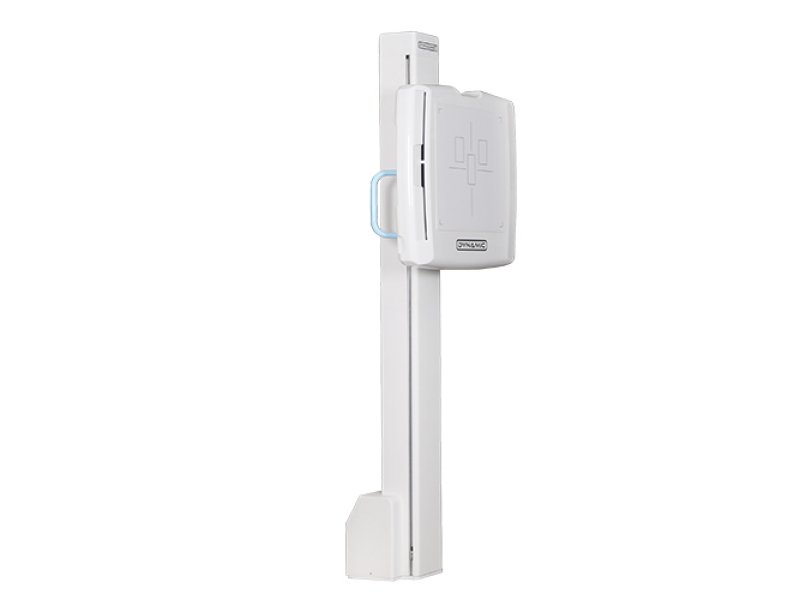

CHEST STAND
Chest Stand Vertical Movement: 40-180 cm
Vertical Movement: 140 cm
3 Field AEC Chamber
Electromagnetic Brake System
Grid Type: Oscilating
Cassette Tray
H.T. CABLES
150 kV

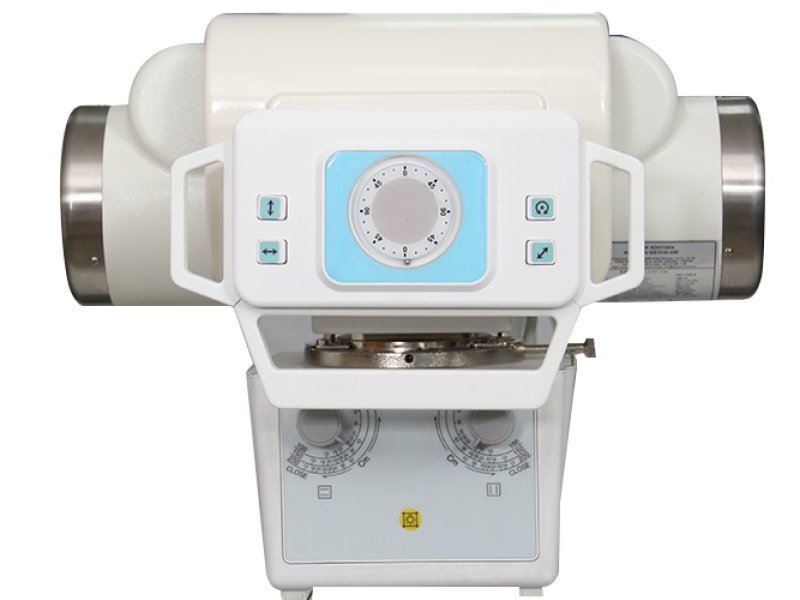

COLIMATOR
Manual Controlled
Collimator Rotation: +/-90 degrees
LED Light with 30 sec timer
Laser Pointer
